V5 SUBMERSIBLE BOREWELL

Applications :


FARMING
Farming
GARDENING
Gardening
HIGH-DEPTH BOREWELL
High Depth Borewell
WATER-SUPPLY
Water Supply
INDUSTRIAL
Industrial

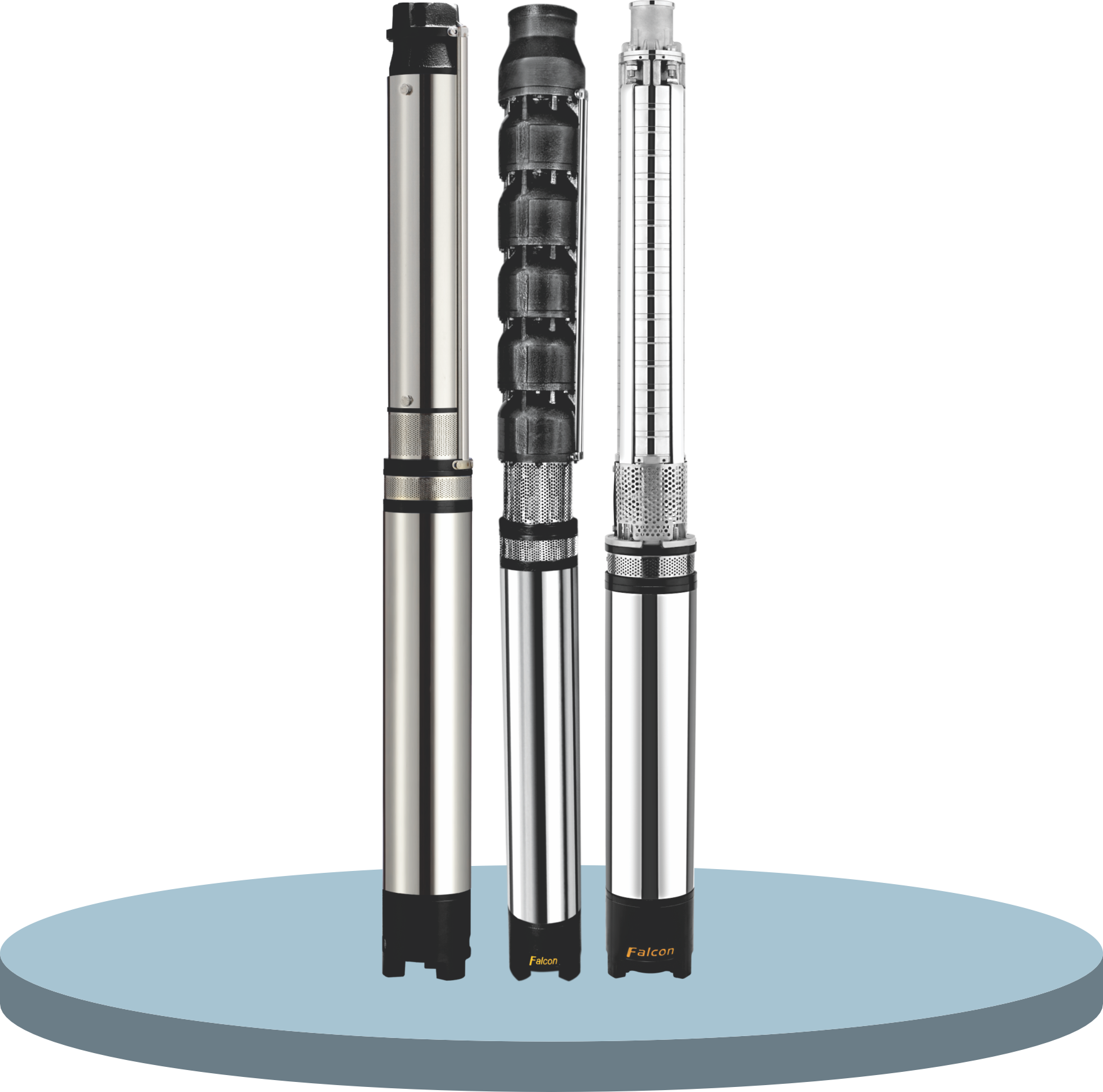

5" Submersible Pumpset

Material Of Construction - Motor

• Oil Seal : Nitrile butyl rubber
• Motor Shaft : SS - 420
• Motor Body Pipe : J4
• Motor Bush : LTB-4 / Teflon
• Thrust bearing assembly : SS - 420 & Carbon
• Diaphragm : High Nitrile Butyl Rubber
• Motor Base : Cast Iron
• Housing Set : Cast Iron

Material Of Construction - Pump

• Check Valve Housing : Cast iron / SS-304
• Check Valve : SS-304 / Nylon
• Outer Shell : J4 / SS – 304
• Impeller : Noryl / Nylon / SS-410
• Bowl : Noryl / Cast Iron / SS-304
• Counter Bush : LTB-4 / SS - 304
• Pump Bush : NBR / LTB 4
• Pump Sleeve : SS-410
• Suction : Cast iron / SS-304
• Pump Shaft : SS-410
• Coupling / Pump Couple : SS-410

Read & Understand Benifits

• SS 304 Grade Investment Casting Bowl and Impeller in Radial Flow Series.(GRS -Series)
• 9 Mtr. Head Per Stage In Radial Flow Series.
• Specially designed high performance thrust bearing (SS-420 tilting pad with carbon plate) to withstand axial thrust loads.
• Dynamically balanced roating parts ensure minimum vibration and longer life
• Motor Portion covered with corrosion resistant stainless steel J4 shell
• More durability and hygiene
• High operating efficiency
• Extremely hardwearing water lubricated bearing
• Thread type motor construction ensures service feasibility
• Specially designed Deep Drawn type pump ensures perfect alignment and Thereby increases the life of the pump set
• Designed for wide voltage operation
• Best alternative for JET & Compressor pump set
• Additional intermediate bearing in higher stage pumps
• Fully SS pumps are available in (GRS - Series)

Product Specification :

Salient Features :
